제품 상세 정보:
|
| 제품명: | 광전 센서 | 감지 거리: | 30-500mm(조정가능) |
|---|---|---|---|
| 작동 전압: | 10-30V DC | 보호 범주: | IP55 |
| 작동 온도: | 0℃...+55℃ | 인증: | CE RoHS |

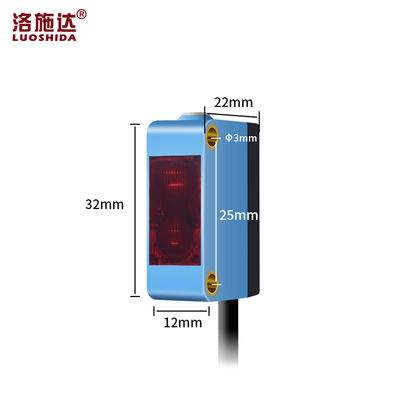

| GXQD-BG442NS GXQD-BG442PS Strip photoelectric sensor | |||||
| Size | 32*12*22mm | ||||
| Sensing distance | 30-150mm(Adjustable) | ||||
| Standard detection object | 200*200mm White card | ||||
| Light source | 650nm Red light | ||||
| Light spot size | Length 60mm,Width 8mm | ||||
| Housing material | PC | ||||
| With LED | Orange LED/Green LED | ||||
| Mode | NPN N.O./N.C. | GXQD-BG442NS(Strip light) | |||
| PNP N.O./N.C. | GXQD-BG442PS(Strip light) | ||||
| Operating voltage | 10-30VDC | ||||
| No load current | <15mA | ||||
| Max.load current | 150mA | ||||
| Leakage curent | <0.01mA | ||||
| Voltage drop | <1.5V | ||||
| Switching frequency | 100Hz | ||||
| Response time | 5ms | ||||
| Switching hysteresis | <10%(Sr) | ||||
| Repeat accuracy | <5%(Sr) | ||||
| Protection category | IP55 | ||||
| Operating temperature | 0℃…+55℃ | ||||
| Temperature drift | <10%(Sr) | ||||
| Short circuit protection | Yes | ||||
| Overload trip point | 170mA | ||||
| Connection | φ3.8 2M PVC Cable,3*0.15mm² | ||||
| Weight | About 43.0g | ||||
| Certification | CE | ||||
